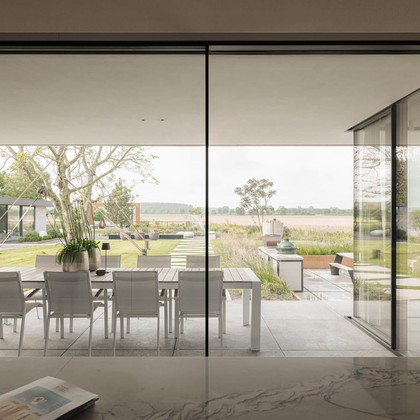

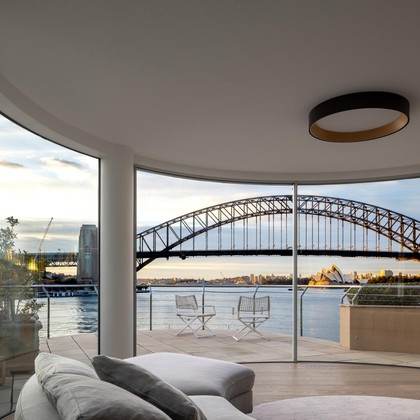

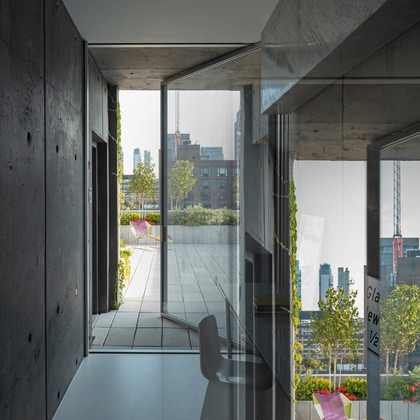

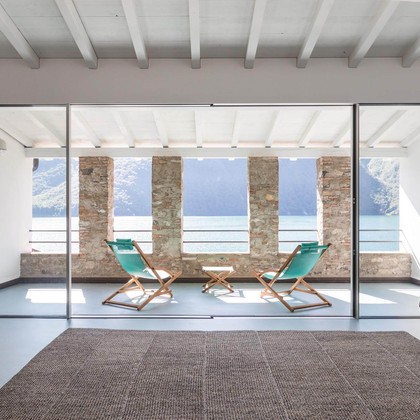

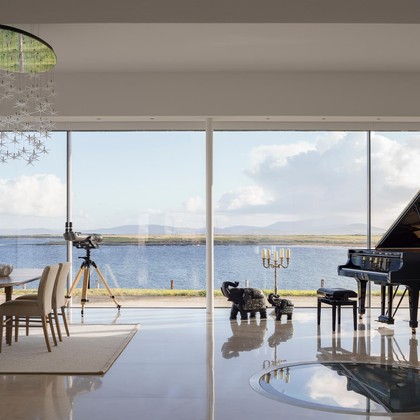

Sky-Frame Classic

A rectilinear aluminum frame, fusing subtle aesthetic with Swiss firmness, composes the design of Sky-Frame’s debut window system Classic. Its pure appearance sides with the distinct design language of modernist champions from Mies van der Rohe to Richard Neutra. Consequently, it is a plea for thinking open and expanding space. Its iconic descent and balanced proportions make Classic fit to any architectural vision, always providing a modernist touch. To its formal quality, the system adds a functional versatility: It can be a platform for multiple extensions, serving diverse practical user needs. The drainage runs beneath the outdoor flooring or in recessed channels of the rails. Joint with its various opening styles – sideways, centralized or with corner-openings – and rails flush-fit to floor and ceiling, it accomplishes a frictionless usability.

Details

Characteristics Sky-Frame 1
Panel sizes 3.2 m × 4 m (larger on request)
Single glazing 12 mm
Daylight / glass ratio 98 %
Watertightness to driving rain up to class 9A (EN 12208 / EN 1027*)
Air permeability up to class 4 (EN 12207 / EN 1026*)
Resistance to wind load up to C3 (EN 12210 / EN 12211*)
Sound insulation up to Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140*)



Characteristics   Sky-Frame 2
Calculation Uw (width × height 4.6 m × 3 m) acc. to norm   SIA 331 EN 10077
Heat insulation value (glass Ug = 1.1) Uw = 1.25 W/m2K 1.36 W/m2K
Heat insulation value (glass Ug = 1.0) Uw= 1.15W/m2K 1.27 W/m2K
Panel sizes   2.3 m × 4 m (larger on request)
Insulating glass (double glazing)   30 mm
Daylight / glass ratio   98 %
Watertightness to driving rain up to class   9A (EN 12208 / EN 1027*)
Air permeability up to class   4 (EN 12207 / EN 1026*)
Resistance to wind load up to   C3 (EN 12210 / EN 12211*)
Anti-fall protection, category   A (DIN 18008-4)
Sound insulation up to   Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140*)



Characteristics   Sky-Frame 3
Calculation Uw (width × height 4.6 m × 3 m) acc. to norm   SIA 331 EN 10077
Heat insulation value (glass Ug = 0.6) Uw = 0.75 W/m2K 0.87 W/m2K
Heat insulation value (glass Ug = 0.5) Uw= 0.66 W/m2K 0.78 W/m2K
Panel sizes   2.3 x 4 m (larger on request)
Insulating glass (triple glazing)   54 mm
Daylight / glass ratio   98 %
Watertightness to driving rain up to class   9A (EN 12208 / EN 1027*)
Air permeability up to class   4 (EN 12207 / EN 1026*)
Resistance to wind load up to   B3 (EN 12210 / EN 11221*)
Anti-fall protection, Category   A (DIN 18008-4)
Sound insulation up to   Rw,P 44 dB (EN ISO 717-1 / EN ISO 10140*)
MINERGIE module   certified (519.09)
MINERGIE-P module   certified (519.12)



* Classification standard / test standard

Details

Characteristics Sky-Frame 1
Panel sizes 10'6" × 13'  (larger on request)
Single glazing ½"
Daylight / glass ratio 98 %
Watertightness to driving rain up to class 8 psf (up to 15 psf with heavy rain device GDE)
Air permeability* ≥0.06 cfm/ft2
Resistance to wind load up to tested up to 50 psf
Sound insulation up to Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140)
Product ratings* R-PG30, AW-PG50 (AAMA/WDMA/CSA 101/I.S 2/A440-08)



Characteristics Sky-Frame 2
U-value 0.3 – 0.35
Panel sizes 7' 6" × 13' (larger on request)
Insulating glass (double glazing)  1 3⁄16"
Daylight/glass ratio 98 %
Watertightness to driving rain 8 psf (up to 15 psf with heavy rain device GDE)
Air permeability  ≥0.06 cfm/ft2
Resistance to wind load tested up to 50 psf
Sound insulation up to Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140)
NFRC certified (SKY-M-1)
NAMI certified
Product ratings R-PG30, AW-PG50 (AAMA/WDMA/CSA 101/I.S.2/ A440-08)
EPD certified (EPD-SF-27. 0)

Values apply to Sky-Frame 2 with the Original option

Characteristics Sky-Frame 3
U-value 0.22 – 0.23
Panel sizes 7' 6" × 13' (larger on request)
Insulating glass (tripple glazing)  2 1⁄8"
Daylight/glass ratio 98 %
Watertightness to driving rain 8 psf (up to 25 psf with heavy rain device GDE)
Air permeability  ≥0.06 cfm/ft2
Resistance to wind load tested up to 50 psf
Sound insulation up to

Rw,P 44 dB (EN ISO 717-1 / EN ISO 10140)

OITC 42 dB (ASTM E1332)

NFRC certified (SKY-M-1)
NAMI certified
Product ratings R-PG30, AW-PG50 (AAMA/WDMA/CSA 101/I.S.2/ A440-08)
EPD certified (EPD-SF-27. 0)

Values apply to Sky-Frame 3 with the Original option

* Classification standard / test standard
